Pure Iron Custom Parts: Manufacturing Guide for Electromagnetic Components

Lisa Chen, who works as a purchasing manager with a manufacturer of solenoid valves in Wisconsin, found the audit report of Q2 suppliers very interesting when she once received it early last May: the company was using four separate sources just to make one precision core component. One supplier for raw material, one for rough-machining, another for finishing grinding, and another for that critical phase of magnetic annealing. Each party complicated the job by adding the expenses of time, money, quality duly risked.Find more info now.

Custom pure iron items have a very special kind of manufacture problematic that arises when working with standard steel and aluminum components. This stuff is by-and-large softer than other materials and needs to be specially engineered to be nonmagnetic and post-machined with further heat treatment, something most general machine shops can't come close to giving. However, when fabricated appropriately, these parts have excellent magnetic performance for solenoids, relays, transformers, and specialty electro-mechanical systems.

This thorough guide is intended to tutor you in topics including the process of manufacturing for pure iron components, applicable tolerances and surface finish, main design elements to be careful about, and also how to evaluate suppliers who would manufacture parts meeting these criteria in both dimensions and magnetic properties.

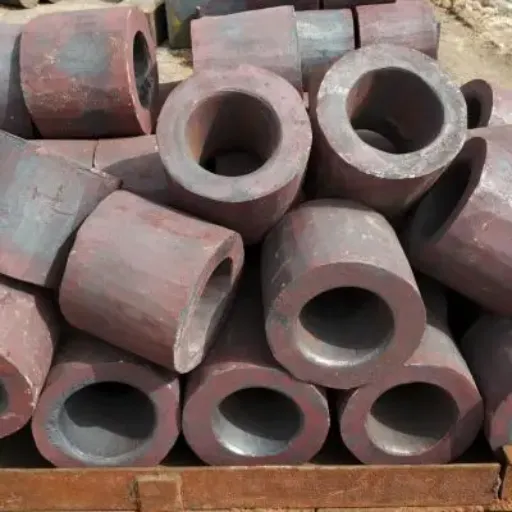

What Are Pure Iron Custom Parts?

Custom pure iron parts are precision-engineered components made of high-purity iron for electromagnetic and electrical applications (typically a minimum of 99.5% Fe, but 99.8% content is common). Such parts must meet dual requirements as opposed to ordinary machined parts; achieving precise dimensional tol­erances as well as possessing specified magnetic properties like high permeability, low coercivity, and other similar properties.

The custom nature of these parts derives from their application-specific require­ments. A solenoid core for a medical device needs a completely separate set of geometry, tolerances, and surface characteristics than relay armatures for industrial auto­mation. Yet both require the same proper material purity and magnetic performance that properly treated pure iron offers.

Common Component Types

Solenois Cores and Pole-pieces

Cylindrical and stepped equilateral forms

Strict diameter tolerances for magnetic gap control

Smooth surfaces, that rub gently to minimize friciton

Designation: highest permeability--DT4E grade or DT4C

Relay Cores and Armature

Complicated shapes with mounting features

Angular tolerances have requirements for contact surfaces to be extremely flat

Cold-headed or precision machined assemblies

Designation: Response requires a range of DT4A-DT4C.

Transformer Bobbin Cores

Thin-walled: cylindrical or rectangular sections

Hard-forged concentricity that keeps winding orderly

Judged for insulation compatibility

Designation:In well-designed magnetic circuits, use the DT4C grade.

Magnetic Shielding Components

Preventive enclosures and flux return paths

Considerably thicker than active magnetic members

Buildability together for assemblies

Designation: Use DT4 or DT4A for economic shielding

Industries Served

Custom iron parts help critical purposes in a range of industries:

Automotive: Fuel injectors, transmission actuators, anti-lock braking systems

Healthcare: Precision pumps, imaging equipment, laboratory automation

Industrial Automation: Pneumatic valves, robotic grippers, sorting systems

Aviation: Flight control actuators, fuel systems, environmental controls

Energy: Circuit breakers, protective relays, instrumentation

Manufacturing Processes for Pure Iron Components

Selecting the appropriate manufacturing process depends on component geometry, tolerance requirements, production volume, and magnetic performance needs.

CNC Turning and Precision Turning

CNC turning processes still claim to be the most conventional methods for pure iron custom parts fabrication when it comes to cylindrical pieces like solenoid cores or relay plungers.

Here are the Special features of our CNC turning capabilities:

Diameter range: Ø3mm to Ø300mm

Length-to-diameter ratio: Up to 10:1 (more for supported parts)

Standard dimensional tolerance: ±0.025mm

Best dimensional tolerance: ±0.01mm (±0.005mm on key dimensions)

Surface finish: Ra 0.8-1.6μm raw; Ra 0.4μm with polishing

Materials Notes:

Pure iron qualifies as a soft material (80-120 HV as opposed to 200+ for carbon steel), enabling faster cutting with a softer impact on breaking tools. However, this softness has some disadvantages:

Chips: It gives stringy chips that can be annoying to manage if you don't have break grooves or if coolants are not properly applied

Surface finish: Material bunking can be an issue. If the cutting mechanics aren't intelligently set, the edge of the cutting leg may thus tear the pattern from the iron.

Work Hardening: Low compared to stainless steel, but still quite demanding on tooling to preserve a smooth surface finish.

Clamping: A weak material that is also prone to clamping distortion should be clamed very gently and with appropriate jaw design.

Cutting Condition:(Optimum Conditions)

Cutting speed: 20-30% higher than carbon steel due to lower hardness

Feed: Moderate-good chip breakage

Depth of cut: Usual parameters are sufficient

Tooling: Sharp carbide inserts properly mounted with positive rake angles.

For German automotive suppliers who from cutting carbon steel switched to executing DT4C pure iron for fuel injector cores, a 40% increase in tool life was observed using 25% higher cutting speeds. Ultimately, machining costs per piece were lowered despite the heightened material cost.

CNC Milling and Machining Centers

Considerations include CNC milling as a panacea anywhere rotational symmetry is not mandatory, as in the case of components with complex geometries or mounting features.

Asset:

Working envelope: Generally 600mm x 400mm x 300mm (larger machines can be considered)

Standard tolerance: ±0.05mm

High precision tolerance: ±0.02mm

Surfaces: Ra 1.6-3.2μm (finer finishes with specialized tooling)

Feature size: Wall thickness as thin as 0.5mm calculated on height

For best application:

Brackets with integrated magnetic paths

Flux return components with complex contours

Housing components with multiple features

Single-port prototype parts that require design flexibility

Challenges of fixturing:

Soft, pure iron material is prone to distortion while fixturing:

Use soft jaws or brass pads to avoid marring.

Clamp just firmly enough to hold against cutting forces.

Consider vacuum fixturing for thin or fragile parts.

Ensure support for large surfaces to defeat warpage from clamping pressure.

Toolpath strategies:

Climb milling usually gives way to a better surface finish.

The maximum chip thickness is selected in high-speed machining situations, as the material is relatively soft.

Ramping entries are favored over direct plunge to ensure less burr formation.

Precision Grinding

When tolerances tighter than ±0.01mm are required, or when superior surface finish is necessary, precision grinding becomes the process of choice.

One word that spring to the mind is "capabilities."

Diameter tolerance: ±0.002mm (+0.001mm for ultra-precision)

Surface finish: Ra 0.1-0.4μm (Ra 0.05μm achievable with superfinishing)

Roundness: Within 0.005mm TIR

Cylindricity: Within 0.01mm

Concentricity: Within 0.005mm relative to datum

Some Common Grinding Operations:

-Cylindrical grinding: Precision diameters needed for shafts and cores.

-Centerless grinding: High-volume production for identical diameters.

-Surface grinding: Flat top mounting surface are best

-Internal diameter grinding: Precision bores and internal features

Magnetic Considerations:

Grinding induces less cold working than hard turning but, still affects the properties of magnetism. The thin, hardened layer produced by grinding is usually about 0.01-0.05mm deep. A light etch or a stress-relief anneal may be useful in a case of the most demanding magnetic applications after grinding.

Stamping and Fine Blanking

Stamping is used for mass production of stamped and extremely thin parts with a reasonable cost reduction as opposed to machining.

Capacity:

Material thickness: 0.1mm to 6mm

Tolerance standard: ±0.05mm

Fine blanking tolerance: ±0.01mm

An output of hundreds to thousands per hour according to piece condition

The complexity of parts: Moderate (limited by the strength of tool steel)

Process Categories:

Progressive die stamping:

Multiple operations within a single die

Coil feeding

Ideal for high volume laminations and brackets

Fine blanking:

Heavier press with triple-action tooling

Clean shear edges with no fracture zones

Tolerances closer to machined parts

Higher tooling cost is justified by volume.

Pure Iron Quality:

The soft material can reduce die wear in respect to harder steels

Burr formation is usually minimal

Springback is reduced compared to feed steels

Pure iron material has very direct influence on the formability of the material.

Fabrication and Secondary Operations

Beyond the main turning and forming, pure iron contracts would generally require further processing.

Wrought Iron and welding:

Pure Iron well welds just like any other common material, so not much difficulty arises in this sector:

TIG (GTAW): with minimum debris and very good control, accuracy is taken to be the best.

MIG (GMAW): For implementing prolific welds into structure

Resistance Welding: Used in spot welds of equipment stacked lamination or assembly

Brazing: Another method of joining, without melting the base materials

Welding implications:

You must be aware of the loss of magnetic properties due to degradation in the heat-affected area of the weld.

Welding procedure may require post-annealing for magnetic code components.

Select from filler metals because it will impact corrosion resistance, magnetic properties, and would affect magnetic loss.

Assembly Operations:

Press Fit: Never gall or struggle with the interference fit because its material is soft.

Threaded Assembly: Using a tap on pure iron is a breeze.

Adhesive Bonding: Surface preparation is a must to maintain adhesion.

Riveting: Sometimes, hard materials of high tensile strength crack.

Tolerances and Precision Capabilities

Understanding achievable tolerances helps designers specify appropriate precision without unnecessarily increasing cost.

Standard vs Precision Tolerances

Cost Implications:

Transitioning from standard tolerances to precision tolerances typically increases the machining cost by 50 to 100 percent. Ultra-high precision work could quadruple its cost. The operative term must be "precision" only when desirable for functional requirements.

A clearance fit for the core entering the coil bore might well need a gross tolerance of ±0.01 mm, while a screw-thread mount might be sufficient at ±0.05 mm. An approach of selectively implemented precision can help cut costs without affecting product function.

Geometric Dimensioning Considerations

Compared to simplistic linear tolerances, geometric dimensioning and tolerancing (GD&T) provides superior controllability for functional requirements:

Common GD&T Applications

Cylindricity: Maintains a consistent magnetic gap around solenoid seals

Perpendicularity: Critical for mounting surfaces mating with other components

Concentricity: Necessary for multi-diameter shafts and cores with steps

Flatness: Required on relay armature contact surfaces

Parallelism: Uniform magnetic circuit in laminations is maintained

Measurement Methods

CMM (Coordinate Measuring Machine) on intricate features

Air gauging for precision bores

Optical comparator for profile verification

Surface plates and indicators for flatness/parallelism.

Surface Finishes and Treatments

Surface finish requirements for pure iron parts depend on both functional needs and environmental exposure.

As-Machined Finishes

Majority of electromagnetic applications perform satisfactorily with a typical unhoned surface finish:

Turned surface: Ra 0.8-1.6µm

Milled surface: Ra1.6-3.2µm

Ground surface: Ra 0.2-0.4µm

Such finishes provide pretty good performance in most of the solenoid cores, relay components, and transformer parts.

Polishing and Superfinishing

In order to lessen the friction or increase corrosion resistance on the surfaces, further fine finishing operations are necessary.

Options for Polishing:

Mechanical polishing: This consists of finer abrasive compounds progressively being used until surface roughness is between Ra 0.1-0.2μm

Electropolishing: Surface is passive and thereby increased if the surface of the material has its top layer removed)

Vibratory finishing: A mass division of deburring and light polishing

Case Studies of Their Applications:

Solenoid plungers need a low sliding friction.

In any part made of material, with their exposure to highly corrosive environments, polish will be applied.

When surface appearance may become the subject of consideration in a part, the polish may be required to be applied on it.

A very important application is in which vacuum systems have been set up, and in such applications, these parts should have the very least outsails.

Coatings and Plating Options

Surface coatings have number of benefits, ranging from corrosion protection to wear resistance,to electrical insulation and modification of the magnetic property.

Nickel Plating

Thickness: 5-25 µm (particular for mention)

Characteristic outcomes: Very good corrosion resistance, protection from wear, solderable

Magnetic effects: little effect on bulk magnetic properties

Locations: Components in an outdoor or humid environment

Zinc Plating

Thickness: 5-15 µm (amount for mention)

Characteristics: Economical corrosion resistance

Tradeoff: Lower wear resistance than nickel

Applications: General industrial components

Phosphate Coating

Kind: Manganese (or zinc) phosphate

Characteristics: Paint adhesion, break-in lubrication, corrosion resistance

Magnetic effects: Being nonmagnetic, the layer may influence (high-frequency) performance

Applications: paint preparation and initial lubrication

Oxide Coatings

Practice: Controlled oxidation (black oxide)

Features: Minimal change in dimensions, moderate corrosion resistance

Magnetic effect: Slightly insulating between lamination

Applications: Lamination stacks, magnetic cores

Post-Machining Annealing

Perhaps no aspect of pure iron custom part manufacturing is more critical—and more frequently misunderstood—than post-machining heat treatment.

Why Annealing Is Critical

In machining, grinding, and cold working, plastic deformation occurs that fundamentally changes the magnetic properties of pure iron.

Effects of Cold Working:

1. Coercivity increases by 20-40% (making it more difficult to magnetically polarize and demagnetize).

2. Permeability decreases by 15-25% (lowered magnetization).

3. Residual stresses create magnetic anisotropy.

4. Greater hysteresis loss reduces the efficiency.

These effects are attributed to the creation of dislocations during sparking, thus impeding the motion of magnetic domain walls. Strangely, pure iron, which has the base magnetically favorable characteristics of high permeability and low coercivity, unfortunately degrades when imposed with shaping processes.

Annealing Process Parameters

The optimum magnetic properties are restored by an appropriate annealing process.

Temperature:

Range: 750-850°C (1380-1560°F)

Below 750°C: Insufficient grain growth and stress relief

Above 900°C: Excessive grain growth risk, mechanical strength reductrion, and detrimental mechanical properties.

Atmosphere:

Hydrogen is the unique gas for decarburization and bright finish

Vacuum will surely more help against oxidation and the choice for most applications

Exothermic gas is easy and cheaper for less critical parts

Nitrogen is good in the case of annealing, without decarburization.

Time:

Hold duration: 2-4 hours for the normal section size and geometry

Thicker sections (>25mm): Extend with holding to 6-8 hours

Objective: Develop full recrystallization and equally distribute grains throughout the cross section.

Cooling:

Rate: Control the cooling, slow, at a desired rate through the critical range (700-500°C).

Method: Furnace cooling or controlled atmosphere cooling.

Quick cooling: Rapid cooling may lead to stresses but usually avoids when everything is within the tolerances achieved.

Magnetic Property Recovery

Properly annealed pure iron recovers approximately 90% of its original magnetic properties:

Grade Specific Notes:

DT4C: Should be completely annealed for good magnetic performance

DT4E: Is an annealed grade but not as critical as DT4C

DT4: A general grade, some cold work is also acceptable.

Quality Control and Inspection

Ensuring pure iron custom parts meet specifications requires systematic inspection of dimensions, material properties, and magnetic performance.

Dimensional Verification

Standard-size control:

CMM for geometrically complicated parts

Air gauging for precise internal negative diameters

Optical projectors for profile checking

Heights T and flat plates for direct measurement

Thread plug gauges for gauging threads

Statistical process control:

First Article Inspection for intent to audit setup

In-process audit operation for finishing of critical operations

Final audit based on the sample plans (AQL)

Analysis of the Cpk for high-volume production

Magnetic Testing

Dimensional control of all electromagnetic components BULK: Verification of magnetic properties is equally essential. The typical operations are:

Permeability Measurement:

Ring sample method (IEC 60404-4)

Strip sample method with laminations

Comparison with the material certification values

Coercive Test

DC hysteresisgraph measurement

Verification of Hc against the grade specification

Process control through trend analysis

B-H Curve Analysis:

Full magnetization curve measurement

Verification of saturation flux density

Characterization of hysteresis loop

Verification of magnetic flux density:

Measurement at fast magnetizing force

Most commonly at B10 (at 1000 A/m) or at B25 (at 2500 A/m)

Material Certification

Thorough documentation helps in tracing and compliance:

Compliance Certificate:

Confirmation of Chemical Composition

Mechanical property tests conducted

Magnetization property test results (post-annealing)

Dimensional inspection report

Material traceability:

Every traceable source of the heat number

Batch/lot tracking

Process routing documentation

Test sample retention

Standards compliance:

GB/T 6983-2008 (Chinese national standard)

ASTM A848 (Magnetic Iron-USA National Standard)

IEC 60404 (International magnetic materials standard)

Design for Manufacturability

Thoughtful design decisions can significantly reduce manufacturing cost while maintaining—or even improving—functional performance.

Cost Reduction Strategies

Reduce Number of Setups:

1. Design parts that can be made with a single setup where possible.

2. Combine features in the design to cut the number of operations required to make the part.

3. Minimize or eliminate as many secondary operations as practical by including as many features as possible in the primary machining.

Example: Designing an electric coil base that requires a proper overall diameter for insulation and RFI shielding; attaching pins; screw threads; and having a finished bore could be set to run as a single-setup CNC turning op on a CNC lathe when designing with live tooling rather than running separate turning and milling operations.

Reduce Variability:

1. Use standard stock sizes to reduce material waste

2. Specify common thread sizes to eliminate the need for tap customizations

3. Design to standard tool dimensions to avoid special tooling

Material Efficiencies:

1. Design near-net shapes to preserve material and scrap cutter wastage

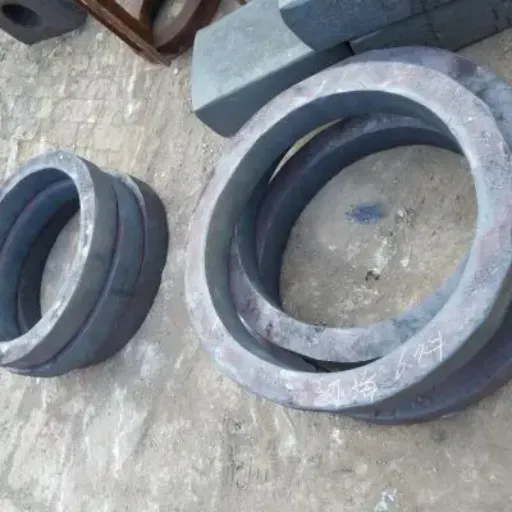

2. For high-volume production with significant material-wastage machining issues, consider forging

3. Optimize nesting for stamped components

Selective Tolerancing:

Tighten your tolerance all the way where it is not critical.

Use tolerancing in geometric terms (GD&T) to control functionality rather than simply throwing out some arbitrary numbers.

Consider statistical tolerancing in high-volume production assembilies.

Common Design Mistakes

Over-tolerancing:

It is nearly a sacrilege to charge unanimity on ±0.01mm specification for all features in a bearing diameter application only, which doubles or triples the cost of production for no valid reason.

Incorrect surface finishes:

Specifying ground or polished surfaces to be employed on non-functional areas raises costs yet is of no benefit whatsoever. A machined finish (≤Ra 1.6μm) is sufficient for the majority of magnetic applications.

Ignoring the materials:

It is unwise to design structures in pure iron that need high strength or hardness properties by the inherent nature of the material being soft. Pure iron is good magnetically but not structurally.

Annealing requirements of the material:

Post-machining annealing is crucial for proper magnetic functioning; lack thereof results in parts whose physical dimensions are acceptable [to the designer], but the magnet fails the job specification.

Tolerance Optimization

Functional Dimensioning:

Identify the truly critical decent features for each feature

Use geometric tolerancing to control function

Allow maximum tolerance on non-critical features

Datum Selection:

Choose datums that match the part's functional mounting

Ensure datums are accessible for inspection

Minimize datum shifts between operations

Sourcing Pure Iron Custom Parts

Selecting a supplier for pure iron custom parts requires evaluating capabilities beyond standard machine shop offerings.

Supplier Evaluation Criteria

Technical Expertise:

Knowledge about DT4 series grades and applications

Ability to procure certified materials with full traceability

Know how processing affects the magnetic properties

Experience with the post-machining annealing requirements

Manufacturing Capabilities:

Precision CNC machining (turning, milling, grinding)

In-house annealing capability

Quality control and magnetic testing

Flexibility for prototype through production

Quality Systems:

ISO 9001 or equivalent quality certification

Material certification and traceability

Statistical process for a high-volume production

Documentation and inspection reports

Application Knowledge:

Comprehension of electromagnetic design requirements

Experience with solenoid, relay, and transformer applications

Ability to provide design for manufacturability feedback

Technical support for material selection and processing

Shanxi Jurun's Integrated Manufacturing Capabilities

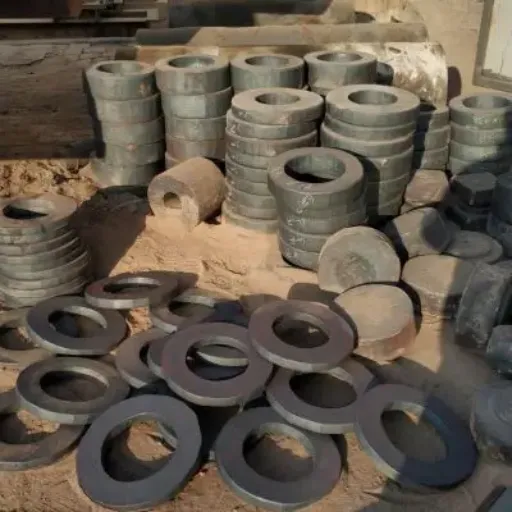

Material Availability:

Easily access to certified DT4, DT4E, DT4C, DT8, and DT9

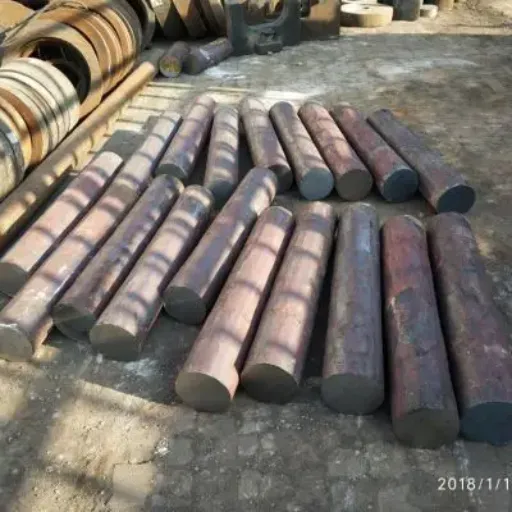

Cold rolled coil, bar stock, and raw material feedstock

Complete material certification and traceability

Machine Capabilities:

CNC turning down to ±0.005mm accuracy

CNC milling for complex geometries

Precision grinding for extremely tight tolerances

Stamping for high volume lams

Heat-treating:

Internal hydrogen atmosphere annealing

Crucial part, vacuum annealing

Process performance validations and certifications

Quality Control:

Dimensional inspection (CMM, air gauging, optical comparator)

Magnetic property testing (permeability, coercivity)

Materials confirmed to the standard GB/T 6983-2008

Complete cleanup paperwork and traceability

Integrated Benefit:

Controlling the feedstock, raw machining, and heat treatment back under one quality system by Jurun is all that it takes to get rid of the multiple supplier coordination difficulties that Lisa Chen suffered under while in Wisconsin. Lead times inevitably get compressed. Also, responsibility remains singular for quality. The finished components provide with unrivalled dimensional tolerances and performance that is purely what is expected out of pure iron.

Frequently Asked Questions (FAQs)

What are the primary benefits of employing pure iron for custom parts?

Though soft and gummy, pure iron enjoys exceptional magnetic qualities suitable for specialized electromagnetic applications. Custom parts produced with this type of iron show good magnetic permeability and low coercivity, which substantially speed the magnetization and demagnetization benefits of relays, solenoids, and magnetic shield devices.

How does CNC machining deal with soft magnetic iron?

CNC machining of these soft magnetic iron materials requires special practices because of their soft and gummy material nature. During the machining process, material tends to cling to the cutting edges. Using special tooling, proper cutting speeds, and feeds for variations will help us to produce your custom parts with good tolerances and finish smoothness without much harm to the magnetic core of the metal.

Are there certain surface treatments necessary for custom pure iron components?

While pure iron formed will form sustenance of the more degeneration in contrast to that common in regular stainless-steel alloys, at least for the tropic climates of medicines and respirators, pros say. Tests reveal higher resistance of metal to oxidation on the surface and resistance to corrosion in the end. Appearances like black oxide, a layer of metallic silver, or a few mainstream antirust oils keep parts functional during corrosive demeanor.

Which trades embrace iron forgings and superior precision parts using pure iron?

All systems electrical and mechanical critically absorb high-purity iron. The people employ these precision parts in aerospace engineering, the making of medical devices, and the auto industry. In their every requirement for very good electromagnetic interference (EMI) shielding or very precise magnetic actuation, the sort of pure iron forgings required is those which perform flawlessly for their specific applications.

What role do impurities play in the performance of pure iron components?

Even small amounts of carbon, nitrogen or oxygen can greatly alter the behavior of metal. Inclusions impede the internal crystal lattice, which contributes to depressed magnetic permeability and increased mechanical hardness of the finished product. Extra-pure base materials pave the way for maintaining perfect softness and ensuring consistent elite quality electromagnetic performances of your custom parts.
